1972 Porsche 914

Repair and Restoration - Part 1 - Motor Mounts

It should be noted that a lot of work in this area is also documented in...

bulletHell hole repair work here
bulletPassenger side longitudinal repair work here
bulletPassenger side suspension console repair work here



6/29/2007

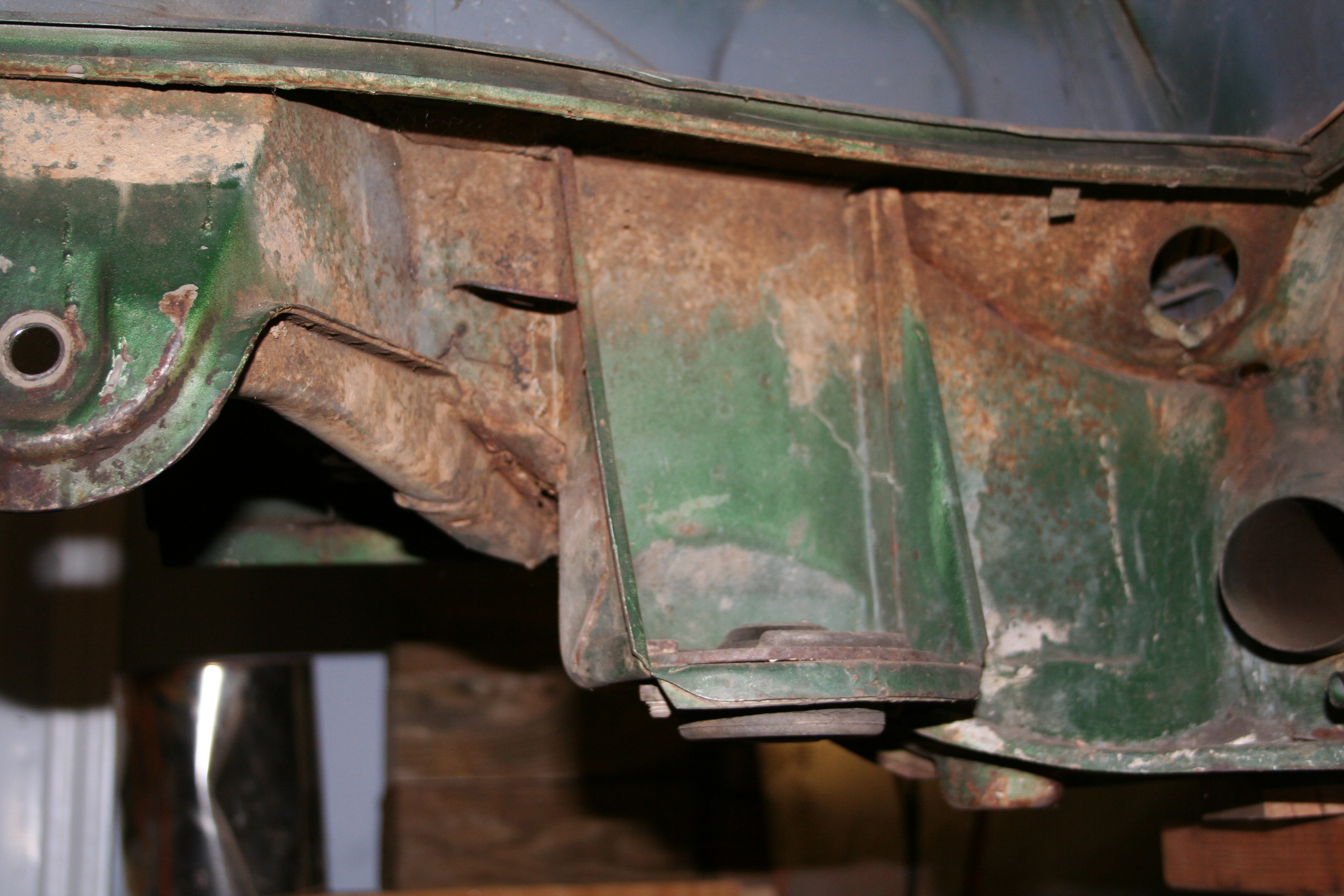

Passenger side motor mount doesn't look that bad.  Just some rust on top right?



7/3/2007

Look at the hidden rust behind that motor mount.  This area will need to be re-skinned.  There is made up of two parts welded together.  An inner corrugated part and the outer skin.  I think the corrugated part is healthy but I will have to remove the outer skin to make sure.



7/4/2007

Driver side motor mount is healthy, but both have to go as I don't need them as this car will never have a four cylinder engine in it again.  They are just going to be in the way and in the case of the passenger side, they were hiding significant rust.
